CISCOM CW SERIES

Product Description

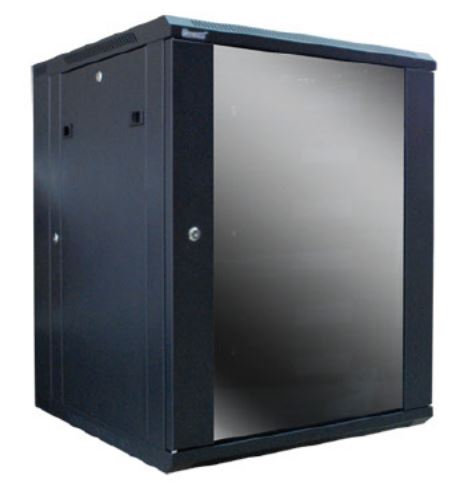

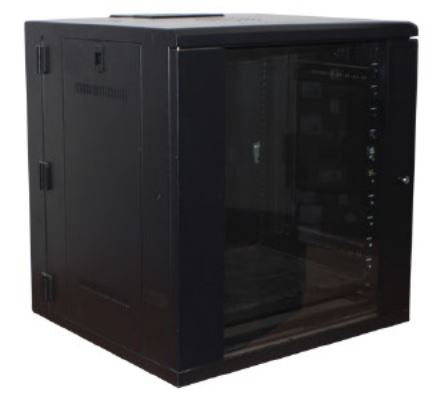

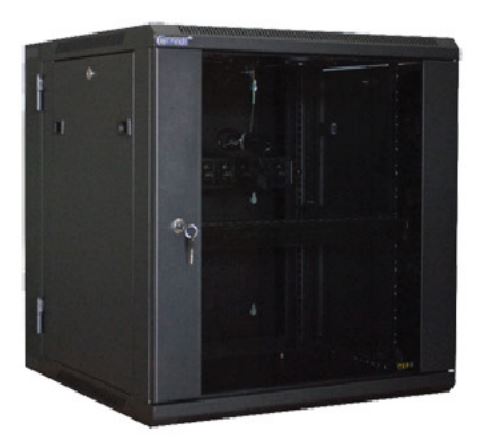

CW series is wall mounting cabinet which has abundant function and flexible operation.It could provide proper and stable environment for small equipments, widely used in structured cabling and intelligent buildings. applied for multi application scenario network and server rack which flexible and functional. It could provide well and stable using space for cabinet equipments, which could widely used in building weak electric well and IDC room.

PN : CW09-606-BLK

Wall Mount Rack 9U Width:600 x Depth:600 x Height:502

Includes:
1. Locking Glass Front Door, Locking Solid Rear Door, Locking Solid Split Side Panels
2. Fan Top w/2 fans pre-installed
3. Cagenut & Screw (24sets-9U&12U), (36 sets-15U), 4 Wall Dynabolt
4. 1pc Cable Management
5. 1pc - PDU 16A, 6 port horizontal, German standard
6. Installation Manual

PN : CW12-606-BLK

Wall Mount Rack 12U Width:600 x Depth:600 x Height:635

Includes:
1. Locking Glass Front Door, Locking Solid Rear Door, Locking Solid Split Side Panels
2. Fan Top w/2 fans pre-installed
3. Cagenut & Screw (24sets-9U&12U), (36 sets-15U), 4 Wall Dynabolt
4. 1pc Cable Management
5. 1pc - PDU 16A, 6 port horizontal, German standard
6. Installation Manual

PN : CW15-606-BLK

Wall Mount Rack 15U Width:600 x Depth:600 x Height:768

Includes:
1. Locking Glass Front Door, Locking Solid Rear Door, Locking Solid Split Side Panels
2. Fan Top w/2 fans pre-installed
3. Cagenut & Screw (24sets-9U&12U), (36 sets-15U), 4 Wall Dynabolt
4. 1pc Cable Management
5. 1pc - PDU 16A, 6 port horizontal, German standard
6. Installation Manual

Front door with lock

Quick open side panel

Adjustable strip

Back board can be opened

Wall mounted installation

Design Standard

• GB/T19520.2
• ANSI/EIA -310-D
• IEC60297-2
• ETSI compatible

Features

• Standard 19" wall mounting cabinet, static load bearing 60KG
• Overall welding or assembly structure
• Quick and convenient hanging install design, support feet or truckles optional for ground installing
• Quick open side panel, convenient operation
• Top rear side has cabling channel, support wiring and structured cabling
• With U mark installation column, has adjustable sign, column accurate adjustment
