CABLE U/UTP - F/FTP

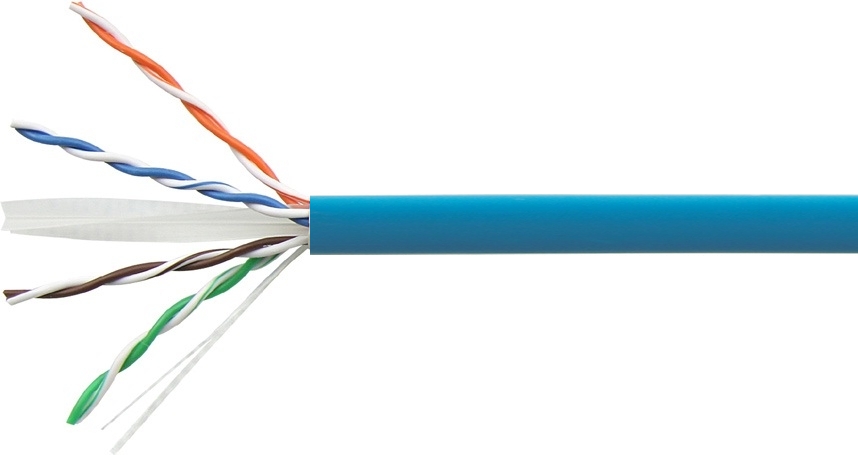

PN : CCC-6UI-WHT
Cat6 Cable, 4 pair, 24 AWG, U/UTP, CM, 305m, Reel in box, Blue
Product Features
System performance exceeds TIA/EIA-568- C.2 and ISO/IEC11801:2012, 250MHz bandwidth can be extended to 500MHz
Internal filler design reduces the loss of the proximal crosstalk and maintain the stability of the impedance
Provide various flame retardant grades and LSZH cable
PE sheath can be used for outdoor
Support high data transmission
Conductor Materials : 99.99% pure copper
Electrical Performance
Impedance: 100±15Ω
Single Conductor DC Resistance CAT5E: ≤9.5Ω/100m
Single Conductor DC Resistance CAT6: ≤9.0Ω/100m
DC Resistance Unbalance: ≤2.5%
Dielectric Strength DC Between Conductors: 1.0Kv,1Min no breakdown
Delay Distortion: ≤45ns/100m
Propagation Delay: ≤536ns/100m
Working Capacitance: ≤330pF/100m
NVP: ≤66%
Insulation Resistance: ≥5000mΩ·km +20c DC (100-500)V

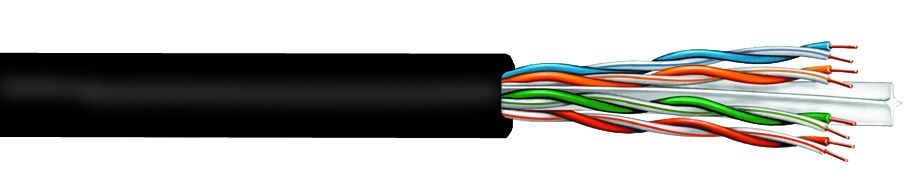

PN : CCC-6UO-BLK
Cat6, 4 pair, 23AWG, U/UTP, PE, 1000ft, Pull-box, black
Product Features
System performance exceeds TIA/EIA-568- C.2 and ISO/IEC11801:2012, 250MHz bandwidth can be extended to 500MHz
Internal filler design reduces the loss of the proximal crosstalk and maintain the stability of the impedance
Provide various flame retardant grades and LSZH cable
PE sheath can be used for outdoor
Support high data transmission
Conductor Materials : 99.99% pure copper
Electrical Performance
Impedance: 100±15Ω
Single Conductor DC Resistance CAT5E: ≤9.5Ω/100m
Single Conductor DC Resistance CAT6: ≤9.0Ω/100m
DC Resistance Unbalance: ≤2.5%
Dielectric Strength DC Between Conductors: 1.0Kv,1Min no breakdown
Delay Distortion: ≤45ns/100m
Propagation Delay: ≤536ns/100m
Working Capacitance: ≤330pF/100m
NVP: ≤66%
Insulation Resistance: ≥5000mΩ·km +20c DC (100-500)V

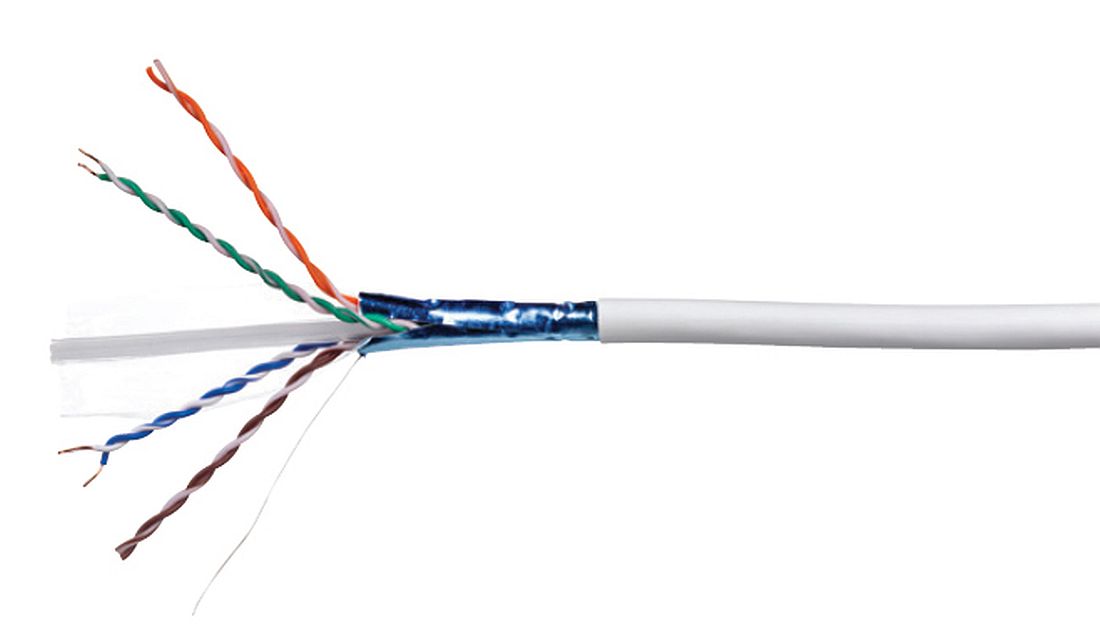

PN : CCC-6AFI-WHT
Cat6A Cable, 4 pair, 23 AWG, F/UTP, LSZH, 305M, Reel, White
Product Features
System performance exceeds TIA/EIA568-C.2 and ISO/IEC11801:2012, 500MHz bandwidth can be extended to 1200MHz
Each pair coated with foil separately, and 4 pairs overall shielded greatly reduce the loss of the proximal and distal end crosstalk
Provide various flame retardant grades and LSZH cable
PE sheath can be used for outdoor
Support high data transmission
Marked with meters, convenient in construction use
Overall metal shielded adapts to various environments and suitable for bad electromagnetic environment
Conductor Materials : 99.99% pure copper
AWG：23
Insulation Materials ：SKIN-FOAM-SKIN
Electrical Performance
Impedance: 100±15Ω
Single Conductor DC Resistance: ≤8.3Ω/100m
DC Resistance Unbalance: ≤2.5%
Dielectric Strength DC Between Conductors: 1.0Kv,1Min no breakdown
Delay Distortion: ≤45ns/100m
Propagation Delay: ≤536ns/100m
Working Capacitance: ≤330pF/100m
NVP: ≤66%
Insulation Resistance: ≥5000mΩ·km +20c DC (100-500)V
