CABLE ASSEMBLY

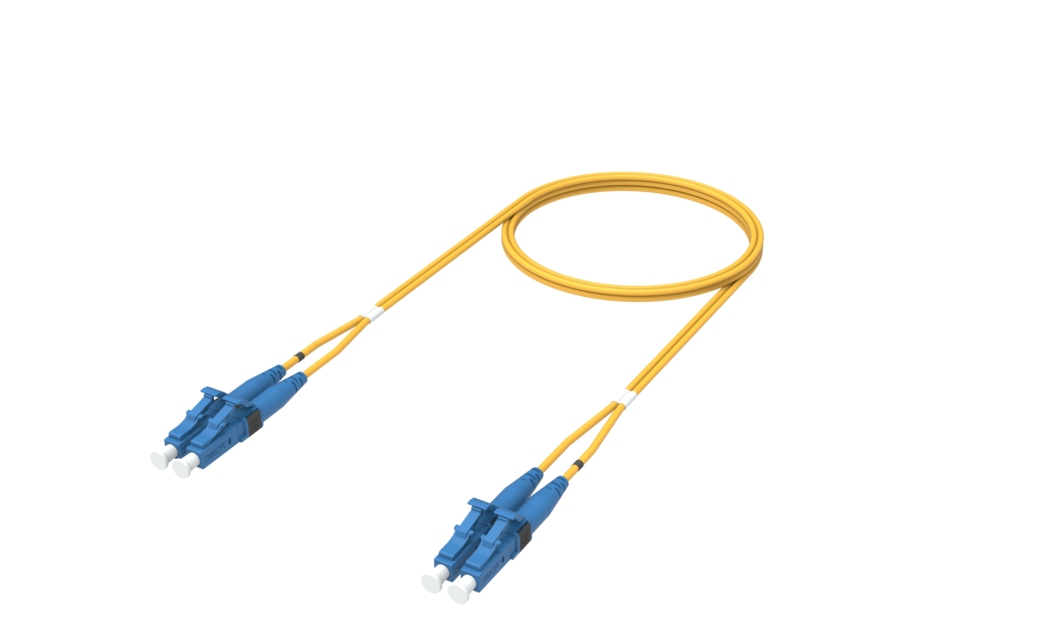

Fiber Optic Patch Cord, Singlemode, LC/UPC to LC/UPC duplex, 1.8 mm LSZH & OFNR, Yellow

PN : CPC-LCDSM-1M

Product Classification

Product Type: Fiber patch cord, duplex

General Specifications

Color, boot A: Blue
Color, boot B: Blue
Color, connector A: Blue
Color, connector B: Blue
Connector A, quantity: 2
Connector B, quantity: 2
Interface, Connector A: LC/UPC
Interface, Connector B: LC/UPC
Jacket Color: Yellow
Polarity: Pairs, flipped
Total Fibers, quantity: 2
Diameter Over Jacket: 1.8 mm | 0.071 in
Cable Retention Strength, maximum: 11.24 lb @ 0 °
Fiber Mode: Singlemode
Fiber Type: G.657.A2, TeraSPEED®
Insertion Loss, maximum: 0.3 dB
Return Loss, minimum: 50 dB
Operating Temperature: -10°C to +60 °C (+14°F to +140°F)
Environmental Space: Dual Rated LSZH/Riser
Qualification Standards: IEC 60332-1 | IEC 60332-3 | IEC 60754 | IEC 61034

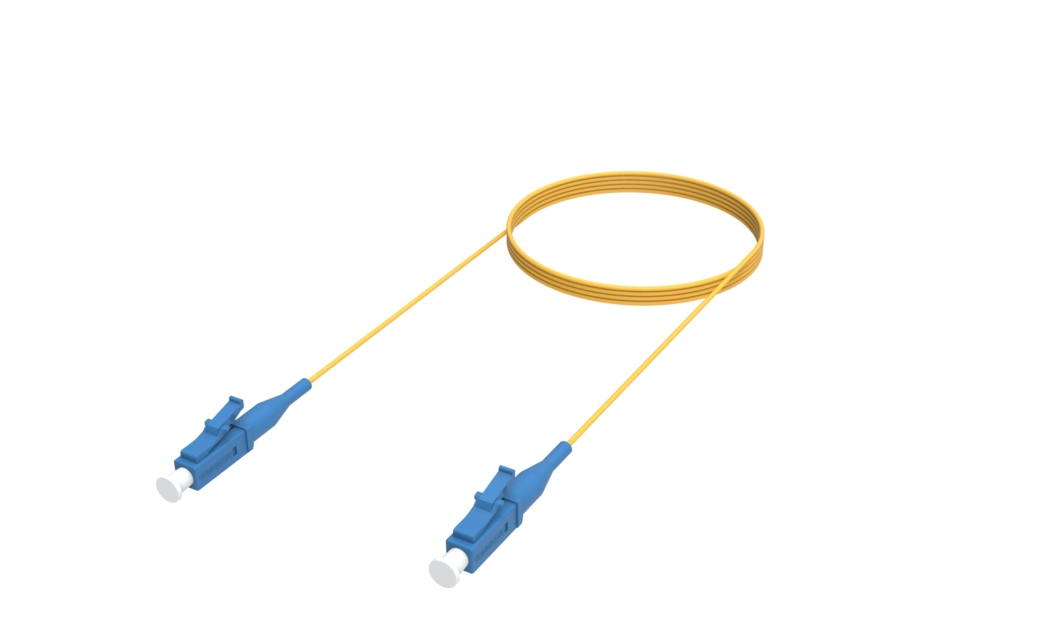

Fiber Optic Patch Cord, LSZH, Simplex, 0.9mm, Singlemode, LC/UPC to LC/UPC, Yellow

PN : CPC-LCSSM-ORA

Product Classification

Product Type: Fiber patch cord, simplex

General Specifications

Color, boot A: Blue
Color, boot B: Blue
Color, connector A: Blue
Color, connector B: Blue
Connector A, quantity: 1
Connector B, quantity: 1
Interface, Connector A: LC/UPC
Interface, Connector B: LC/UPC
Jacket Color: Yellow
Total Fibers, quantity: 1
Diameter Over Jacket: 0.9 mm | 0.035 in
Cable Retention Strength, maximum: 1.00 lb @ 0° | 1.00 lb @ 90°
Fiber Mode: Singlemode
Fiber Type: G.657.A1, TeraSPEED®
Insertion Loss, maximum: 0.3 dB
Return Loss, minimum: 50 dB
Operating Temperature: -10°C to +60 °C (+14°F to +140°F)
Environmental Space: Low Smoke Zero Halogen (LSZH)
