CAT 6A/CAT 6 S-FTP/UTP
SHIELDED / UNSHIELDED MODULAR JACK

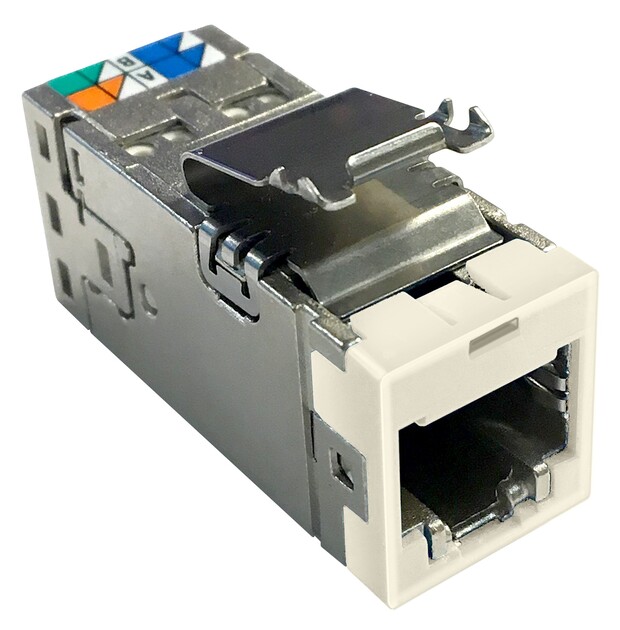

PN : CMJ-6AS-ALM
Product Classification
Product Type: Modular jack
Product Series: SLX Series
General Specifications
ANSI/TIA Category: 6A
Cable Type: Shielded
Color: Almond
Conductor Type: Solid | Stranded
Integrated Dust Cover Type: None
Mounting: SL Series faceplates and panels
Mounting Note: Color matches with SL-style Almond Faceplates and Surface Mount Boxes
Outlet Type: Standard
Termination Punchdowns, minimum: 5 times
Termination Tool: SL Termination tool
Termination Type: IDC
Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Wiring: T568A | T568B

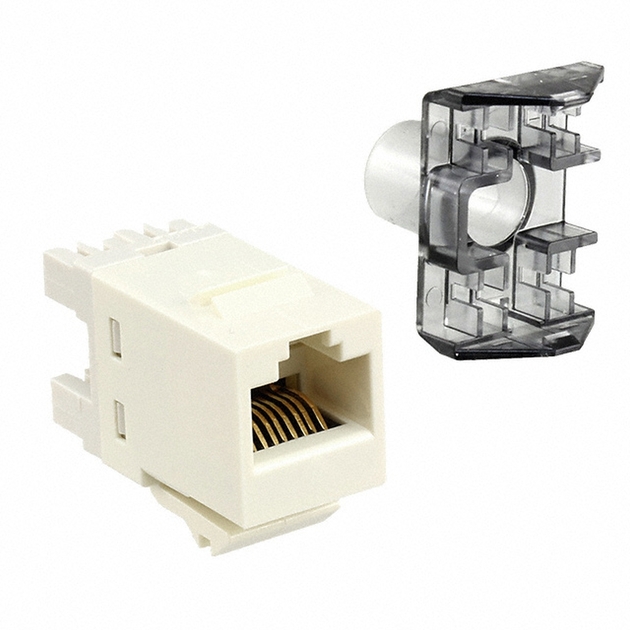

PN : CMJ-6U-ALM
Product Classification
Product Type: Modular jack
Product Series: SL Series
General Specifications
ANSI/TIA Category: 6
Cable Type: Unshielded
Color: Almond
Conductor Type: Solid | Stranded
Integrated Dust Cover Type: None
Mounting: SL Series faceplates and panels
Mounting Note: Color matches with SL-style Almond Faceplates and Surface Mount Boxes
Outlet Type: Standard
Termination Punchdowns, minimum: 200 times
Termination Tool: SL Termination tool
Termination Type: IDC
Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring: T568A | T568B

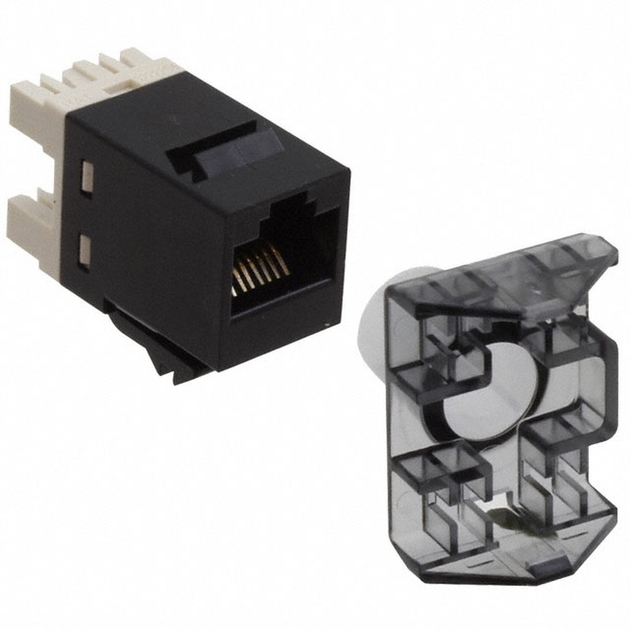

PN : CMJ-6U-BLK
Product Classification
Product Type: Modular jack
Product Series: SL Series
General Specifications
ANSI/TIA Category: 6
Cable Type: Unshielded
Color: Black
Conductor Type: Solid | Stranded
Integrated Dust Cover Type: None
Mounting: SL Series faceplates and panels
Mounting Note: Color matches with SL-style Black Faceplates and Surface Mount Boxes
Outlet Type: Standard
Termination Punchdowns, minimum: 200 times
Termination Tool: SL Termination tool
Termination Type: IDC
Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring: T568A | T568B

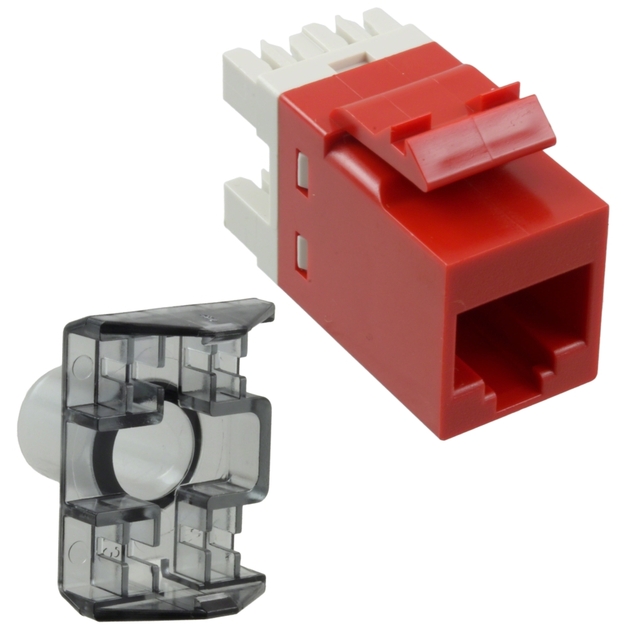

PN : CMJ-6U-RED
Product Classification
Product Type: Modular jack
Product Series: SL Series
General Specifications
ANSI/TIA Category: 6
Cable Type: Unshielded
Color: Red
Conductor Type: Solid | Stranded
Integrated Dust Cover Type: None
Mounting: SL Series faceplates and panels
Mounting Note: Color matches with SL-style Red Faceplates and Surface Mount Boxes
Outlet Type: Standard
Termination Punchdowns, minimum: 200 times
Termination Tool: SL Termination tool
Termination Type: IDC
Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring: T568A | T568B

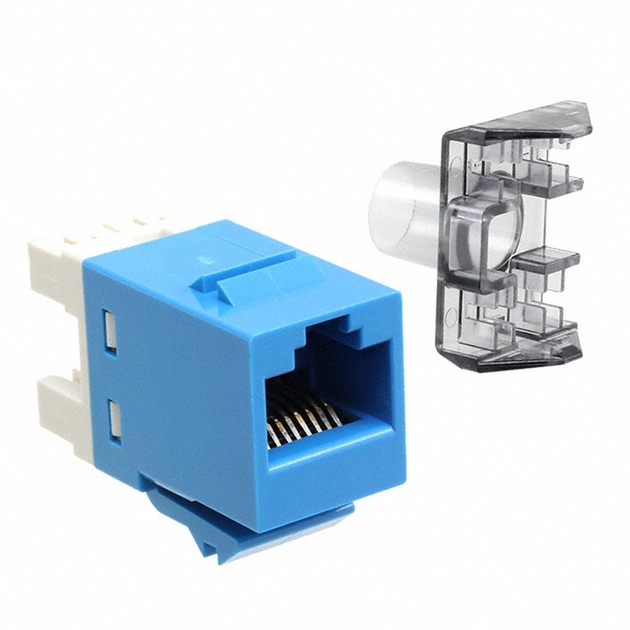

PN : CMJ-6U-BLU
Product Classification
Product Type: Modular jack
Product Series: SL Series
General Specifications
ANSI/TIA Category: 6
Cable Type: Unshielded
Color: Blue
Conductor Type: Solid | Stranded
Integrated Dust Cover Type: None
Mounting: SL Series faceplates and panels
Mounting Note: Color matches with SL-style Blue Faceplates and Surface Mount Boxes
Outlet Type: Standard
Termination Punchdowns, minimum: 200 times
Termination Tool: SL Termination tool
Termination Type: IDC
Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring: T568A | T568B
