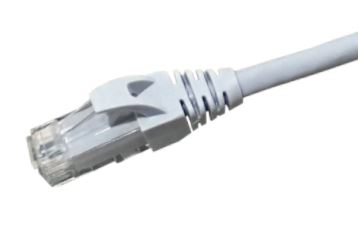

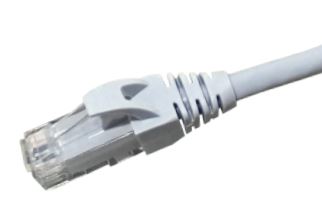

CAT6A/CAT6 PATCH CORD
Compliance
ISO/IEC11801:2012
ANSI/TIA568-C.2
YD/T 926.3-2009
Product Features
The conductor is the stranded bare copper (99.99%) wire that is soft and easy to bend
Plug reed gilding to ensure product performance
The outer sheath is made of a rubber sealing process, and the conductor is sealed not to be oxidized; The extended-type admissible principle is extended with a rubber sheath, anti-skid resistance and a certain bending radius to reduce the stress of the plug
The golden pin improves the product features, preventing the oxidation of the pin and extending the service lift.
Lengths and colors can be customized
Electrical Performance
Impedance : 100±15Ω
DC Resistance Unbalance : ≤2.5%
Dielectric Strength DC Between Conductors 1.0Kv, 1Min no breakdown
Delay Distortion ≤50ns/100m
Propagation Delay : ≤555ns/100m
Working Capacitance: ≤5.6nF/100m
Insulation Resistance ≥5000mΩ·km +20c DC (100-500)V
Mechanical Characteristics
Elongation Of Conductor Breaking : ≥15%
Elongation Of Insulation Fracture ≥300%
Insulation Tensile Strength ≥16MPa
Anti - tensile Strength Before Aging : ≥13.5MPa
Anti - tensile Strength After Aging : ≥12.5MPa (100℃±2℃,168h)
