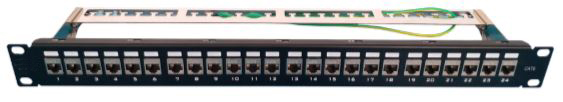

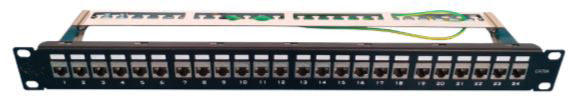

PATCH PANEL UTP/FTP
Compliance
ISO/IEC11801:2012
ANSI/TIA568-C.2
YD/T 926.3-2009
Product Features
The system performance exceeds ANSI/TIA568-C.2 and ISO/ IEC11801: 2012 for the provisions of the series product standards
Standard 19” installation guarantees the mechanical strength of products
Adopt modular shielded design to facilitate construction, save time and meet the customer's needs
The golden pin improves the product features, preventing the oxidation of the pin and extending the service lift.
Protective cover ensures the wire firm with the function of dust-proof
Removable back frame, easy for installation
Electrical Characteristics
Compressive Strength DC: 1000V(AC750V) 1Min
Rated Current 1.5Amp
Insulation Resistance ≥200mΩ
Contact Resistance ≤20mΩ
DC Resistance ≤300mΩ
Connecting Reactance ≤20mΩ
Mechanical Characteristics
Plug Insertion ≥1000
IDC Insertion Life Span ≥250
AWG 22~26AWG
Insertion Power ≤ 20N
Plugging Out Power ≥ 20N
